Lithiophilite

#PD34927

Lithiophilite

#PD34927
Availability
Sold
Size
9 x 7 x 4 cm - Sm Cabinet
Formula
LiMn2+PO4 (RRUFF)
Locality
Nevel quarry, Newry, Oxford Co., Maine, United States
Tagged
phosphate , pegmatite

Lithiophilite  occurs in lithium and phosphate rich pegmatites. A complete series exists between end members triphylite and lithiophilite. Essentially the composition of either two will contain certain amounts of iron and manganese and thus the formula is Li(Mn,Fe)(PO)4. Triphylite is the ferrous iron end member, while lithiophilite is the ferrous manganese end member. Ferrous iron and manganese are important here since this tells you that the two end members are essentially non-oxidized and therefore probably primary (i.e. unaltered by metasomatic reactions).  Moore, in the MR issue (May/June 1973) authored a fascinating paper titled “Pegmatite Phosphates”. In this paper Moore explains the solid solution series of triphylite-lithiophilite. Lithiophilite end member occurs less frequently than triphylite since there is usually an abundance of iron in solution. However, as Moore explains, if lithiophilite occurs in a pegmatite it is not always safe to assume that the original pegmatite was iron deficient. Rather it is possible that the iron may have been consumed by other minerals namely schorl tourmaline.

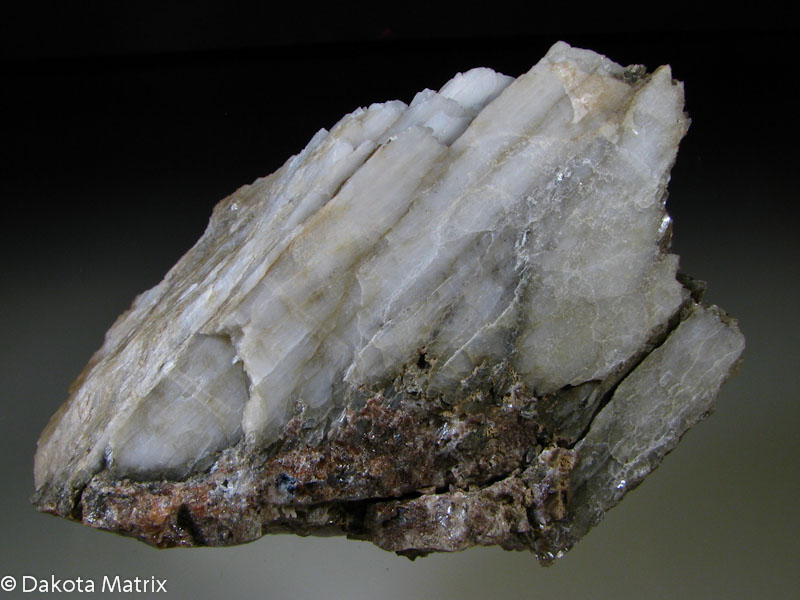

This specimen, I believe, was once in Dr. Paul Moore’s collection. The number on the specimen corresponds to the label. The specimen itself is beautiful off-white cleavable mass. Moore's original tag shows this to be from the "Newry Mine". I am assuming this to be equivalent to the Nevel Mine listed on Mindat. Anyhone: please correct me if this is an erroneous assumption.

Lithiophilite

Formula
LiMn2+PO4
Crystal System
Orthorhombic
Crystal Habit
Prismatic
Cleavage
Perfect, Very Good, Imperfect
Luster
Vitreous - Resinous
Color
brown, yellowish brown, salmon, brownish, blackish
Streak
gray white
Class
Orthorhombic - Dipyramidal
Fracture
Conchoidal - Uneven
Hardness
4-5

Data courtesy of Webmineral.

Collection
Phillips Collection

old Paul Moore tag
